24. Använding av en relais

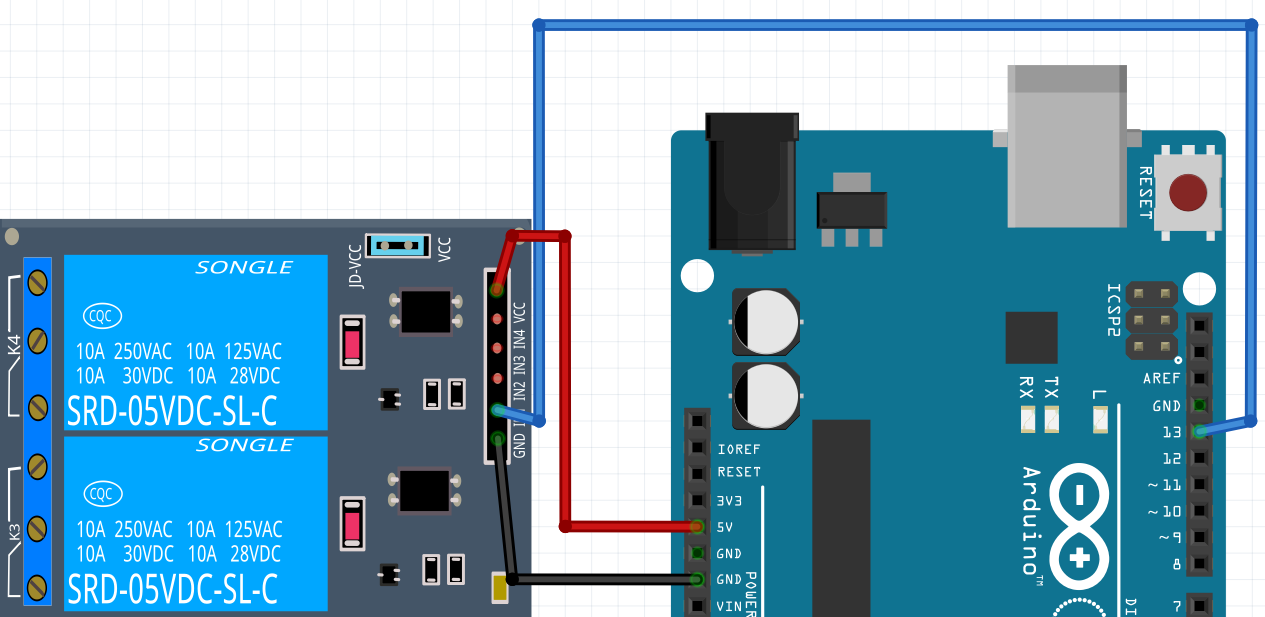

Connect the relais to the Arduino. How many pins of the relais will be controlled by the Arduino? Which pin is it?

  • One, on pin 13.

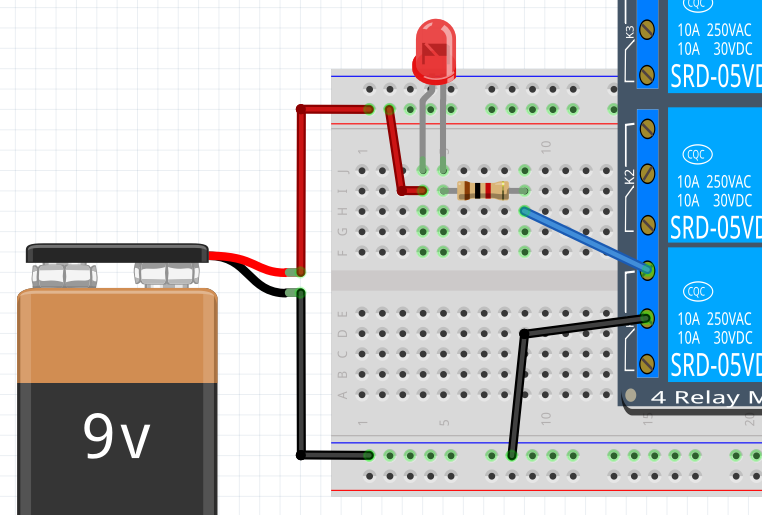

Connect one LED to 9V via the relais as such:

Use the Blink code to make the LED blink.

Blink code here

Does the LED go on or off with digitalWrite(13, LOW)? Why?

  • The LED goes on with digitalWrite(13, LOW), as it is the connection to GND that triggers the relay. When the relay is triggered, the 9V battery can connect to the LED.

Now, connect all four Arduino pins to the 4 relay input pins:

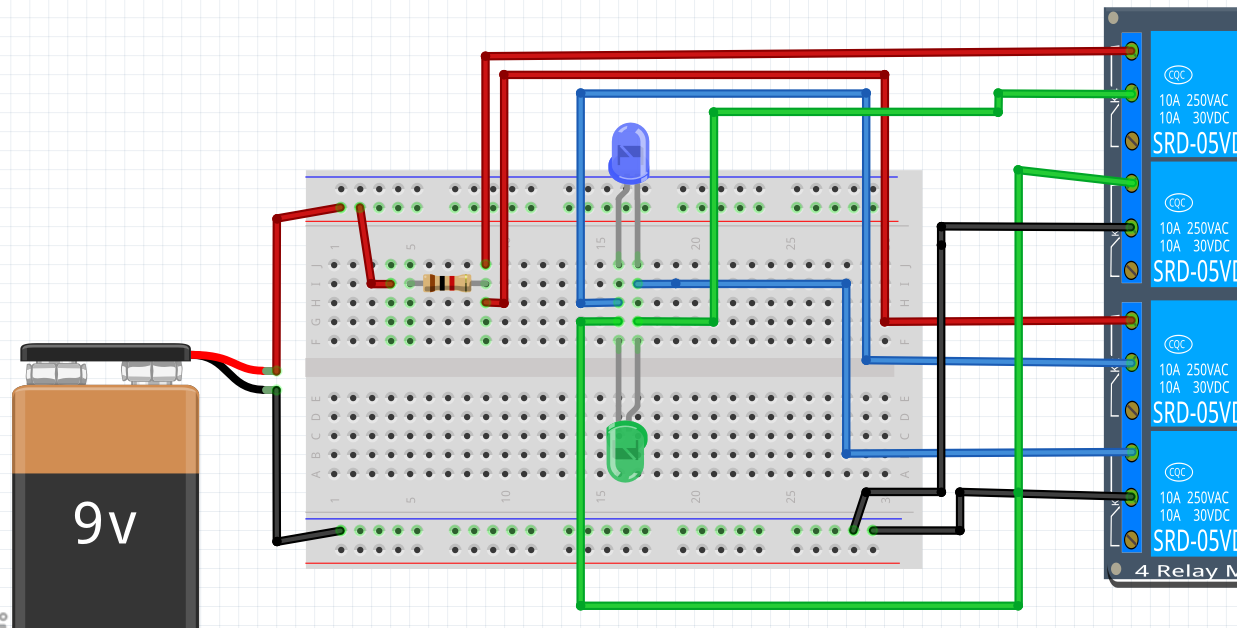

Then, build up the H bridge:

Exam:

Write code that makes

  • The blue LED turn on
  • Turn both LEDs off
  • The green LED turn on
  • Turn both LEDs off
