Create a plot

Learning outcomes

  • Learners have created a plot from their data
  • Learners have used the book 'R for Data Science' for things they need
For teachers

Teaching goals are:

  • Repeat previous session

Repeat:

  • What is ggplot2?
  • What is gg in gplot2?
  • Why use ggplot2 for plotting?
  • In ggplot2 terminology, what is an aesthetics?
  • In ggplot2 terminology, what is a geometrical objects?

Prior question:

  • .

Goal of today

To create a plot from your data.

Prefer a video?

View this session as a YouTube video

Could you give an example?

From this data ...

Country 2000 2015 2030
China 1270 1376 1416
India 1053 1311 1528

and some R code to create this figure ...

My refined plot

after which the figure (as an SVG) can be worked upon in other tools.

A typical project visualization

You want to visualize past and predicted population size by country, using the data from the Wikipedia article 'World population'

These are the steps:

1. Preparing the data

You (wisely) decide to start with only a subset of the data from the Wikipedia article 'World population':

Country 2000 2015 2030
China 1270 1376 1416
India 1053 1311 1528

From the context, you understand that:

  • the columns with numbers (e.g. 2000) is the years
  • the values in the cells are the estimated population size, in millions

This data is best saved as a comma-separated (.csv) file. If your data is in a spreadsheat (e.g. Calc or Excel), you can typically export your data as a (.csv) file.

2. Reading the data

When the data is saved as a .csv file called introduction_2.csv, you can read this data in R like this:

library(readr)
t <- read_csv("introduction_2.csv")

Now you data is in a table called t.

Reading the data is described in Chapter 7: Data Import.

3. Tidying the data

The data must be transformed to be tidy, which holds these features:

  • Each variable is a column; each column is a variable.
  • Each observation is a row; each row is an observation.
  • Each value is a cell; each cell is a single value.

Our data is not tidy yet:

Country 2000 2015 2030
China 1270 1376 1416
India 1053 1311 1528

Our data is not tidy yet, as we have three observations per row:

  • The population in each in the year 2000
  • The population in each in the year 2015
  • The population in each in the year 2039

In R, we can make this tidy in many ways, for example:

library(tidyr)
t <- t |> pivot_longer(
  cols = c("2000", "2015", "2030")
)

Now the data is tidy like this:

Country name value
China 2000 1270
China 2015 1376
China 2030 1416
India 2000 1053
India 2015 1311
India 2030 1528

Transforming the data is described in:

4. Cleaning the data

We need to clean the data, as plotting the data as such will fail:

library(ggplot2)
ggplot(t, aes(x = name, y = value, color = Country)) + geom_line() # Will fail

We do some data transformations:

names(t) <- c("country", "t", "n")
t$country <- as.factor(t$country)
t$t <- as.numeric(t$t)

Now the data looks like:

country t n
China 2000 1270
China 2015 1376
China 2030 1416
India 2000 1053
India 2015 1311
India 2030 1528

Plotting this now works:

ggplot(t, aes(x = t, y = n, color = country)) + geom_line()

5. Saving the plot

After having plotted the plot, it can be saved as such:

ggsave("my_plot.svg")
ggsave("my_plot.png")

6. Refine

The plot looks like this now:

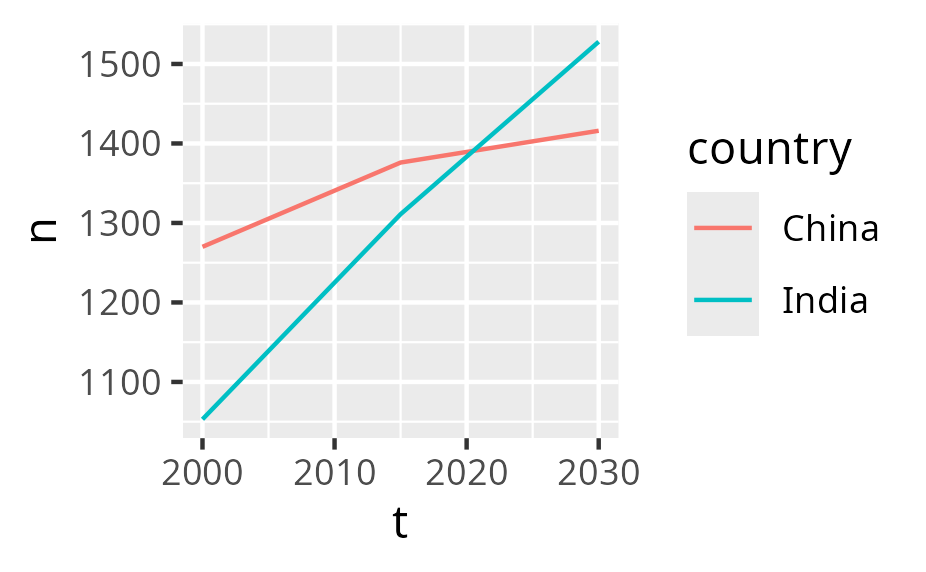

My plot

You can refine it in many ways:

  • Refine the SVG in another tool
  • Refine the generation of the plot

For example, in R:

ggplot(t, aes(x = t, y = n, color = country)) +
  geom_line() +
  geom_point() +
  scale_x_continuous("Time (year)") +
  scale_y_continuous("Population size (million)", limits = c(0, NA)) +
  labs(title = "Population size in time", color = "Country")

Now the plot has proper labels:

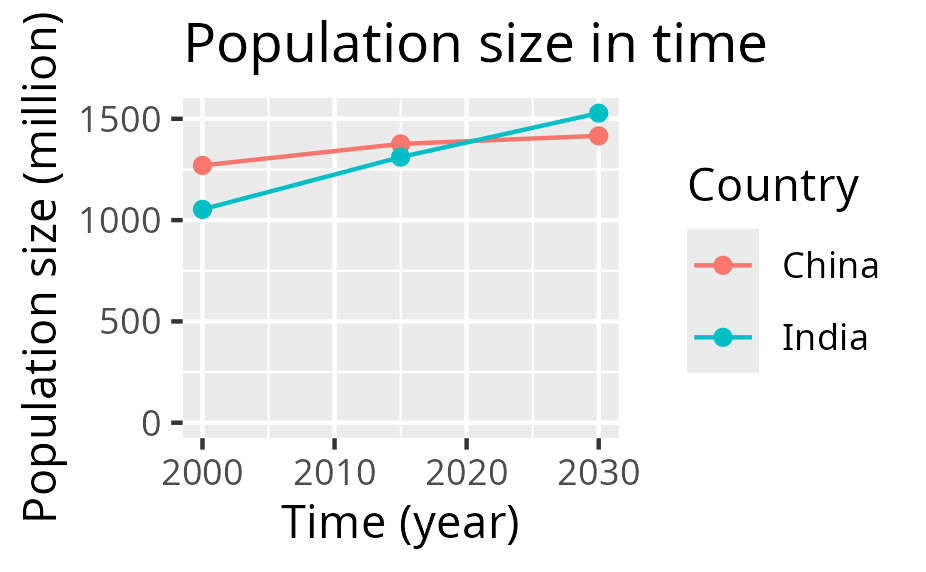

My refined plot

Refining the looks of your plot is described in:

As there is so much to tweak, you definitely need to search the web and/or use an AI.

Exercises

Exercise 1

Create the plot you need for this course. Follow the steps at the 'A typical project visualization' section. Read the chapters if needed and/or search the web and/or use an AI to get what you need.

Done?

Well done!

Please fill in the evaluation form :-)

Then it is time to continue on your project again. Good luck!
