Solder the PCB

Transfer the breadboard schematic to a printed circuit board.

Do not directly solder to the chip, use the chip holder instead. After soldering, plug in the chip.

Upon powering this, the buzzer will go off for a little more than three seconds.

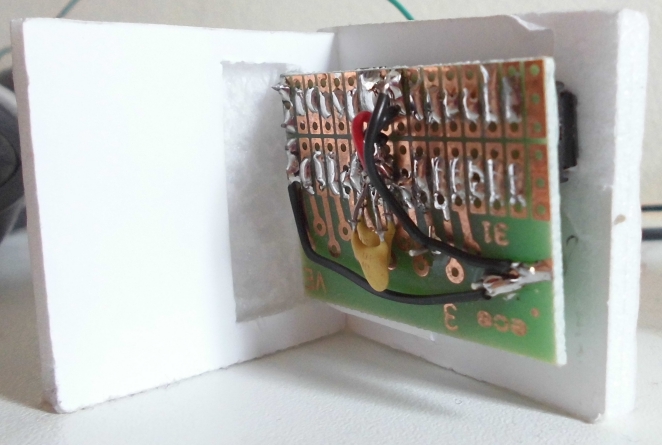

Minimal Pi Clock soldered PCB

Minimal Pi Clock soldered PCB
